ISO: Rear Turn Signal Mod

got my '08 Custom and I am looking for a turn signal mod for the OEM lights to relocate them... anyone done this?

I am getting a side mount plate bracket and want to remove the plastic bracket on the back of the fender... but gotta relocate the lights first and I DO NOT want to buy lights to go on to the chrome bolt... unless I absolutely have to?!?!

thanks!

'02 Drifter 1500
... just an awesome ride!

'08 Custom-ized
Candy Lime Green
jagered is offline
Sponsored Links
Advertisement

post #2 of 14 (permalink) Old 07-20-2010, 06:41 AM Thread Starter
Top Contributor

jagered's Avatar

Join Date: May 2010
Location: Cherry Hill, NJ
Posts: 742
Garage
no one has reused the OEM signals somewhere else??? i find that hard to believe?!?!

i think i might modify the bracket after the side mount plate is on... anyone?

beuhler... beuhler... beuhler...

'02 Drifter 1500
... just an awesome ride!

'08 Custom-ized
Candy Lime Green
jagered is offline
post #3 of 14 (permalink) Old 07-20-2010, 10:15 AM
Member

prlsnpsdodge's Avatar

Join Date: May 2010
Location: Texas Country
Posts: 71
I've thought about doing this myself.... Our fenders aren't stamped steel, so that kinda limits the location possibilities. I'd like to place mine in the exact spot where the 2 side reflectors are located. but there isn't any internal support for the blinker bolts at that location. I'm thinking about making my own bracket to attach to the internal support under the fender and then drilling a hole for the blinker bold in the same place as the reflector. I haven't taken the time to get measurements and stuff, but it shouldn't be any harder than making my own Side mount plate (not this bike, it was for my chopper that I lost last year).

'09 Orange Copper Custom. Debaffled, 170/80 - 15. Bags, and shield.

Gone but not Forgotten - '09 900 Custom SE. Debaffled. Avon Venom 90/90/21 front and 170/80/15 rear.
prlsnpsdodge is offline

post #4 of 14 (permalink) Old 07-20-2010, 01:00 PM Thread Starter
Top Contributor

jagered's Avatar

Join Date: May 2010
Location: Cherry Hill, NJ
Posts: 742
Garage
yea... there are the two bolts that go through the fender and into the support that are under the chrome eye candy piece... if you had longer bolts in those holes you could mount a bracket to that. would have to be bent and such to get it in the right place and angled correctly.

what about a backplate behind the reflector?? not sure the stock light bolt would be long enough then... hmmm

'02 Drifter 1500
... just an awesome ride!

'08 Custom-ized
Candy Lime Green
jagered is offline
post #5 of 14 (permalink) Old 07-20-2010, 02:44 PM
Junior Member

Join Date: Jul 2010
Posts: 19
I have a classic. But if I had a custom and wanted to mount them on the fender, I would get rid of the black plastic extensions and just mount the bullets right to the chrome sash and through the fender. Maybe easier said then done but it would look good.
McBagginz is offline
post #6 of 14 (permalink) Old 07-21-2010, 05:08 AM Thread Starter
Top Contributor

jagered's Avatar

Join Date: May 2010
Location: Cherry Hill, NJ
Posts: 742
Garage
Quote:
Originally Posted by McBagginz View Post
I have a classic. But if I had a custom and wanted to mount them on the fender, I would get rid of the black plastic extensions and just mount the bullets right to the chrome sash and through the fender. Maybe easier said then done but it would look good.
gotchya... but that is my dilemma... i do not want to spend unnecessary cash to get rid of that bracket. you're talking about $100 total for them and then i have spare parts sitting around?!

'02 Drifter 1500
... just an awesome ride!

'08 Custom-ized
Candy Lime Green
jagered is offline
post #7 of 14 (permalink) Old 02-25-2012, 07:03 PM
Junior Member

Join Date: Jan 2011
Posts: 11
Believi modified my signals using new ones f/ a bike shop. The brackets i used from my job. There 67 mustang fender tie bracks. If u want i can email pics.
bowtied is offline
post #8 of 14 (permalink) Old 02-25-2012, 07:06 PM
Junior Member

Join Date: Jan 2011
Posts: 11
$30 invested in mine not counting the side mount setup
bowtied is offline
post #9 of 14 (permalink) Old 02-25-2012, 08:07 PM
Senior Member

Kinnally's Avatar

Join Date: Nov 2009
Location: northern new jersey
Posts: 129
Quote:
Originally Posted by bowtied View Post
$30 invested in mine not counting the side mount setup
I spent $12.00 on really small LED's that I drilled through the rear fender and attached through the sides. It's been two years and noproblems so far except I can't mount bags anymore.
Attached Thumbnails
Click image for larger version

Name:	vulcan.jpg
Views:	238
Size:	92.6 KB
ID:	9255
Kinnally is offline
post #10 of 14 (permalink) Old 02-26-2012, 08:38 AM
Top Contributor

bigsarge2012's Avatar

Join Date: Jul 2010
Location: Oahu, Hawaii
Posts: 953

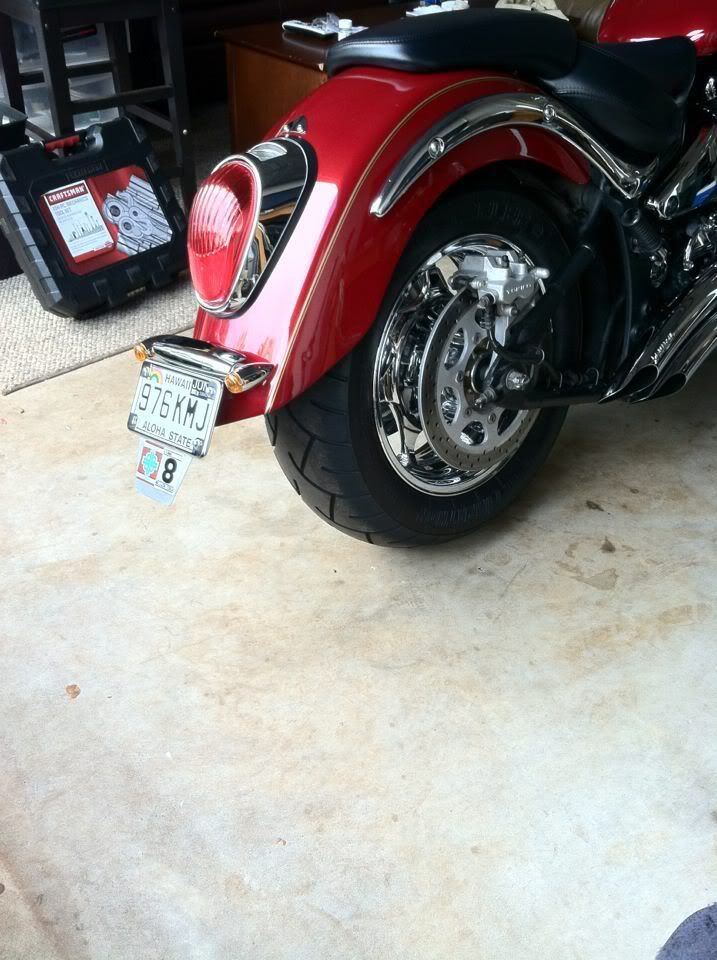

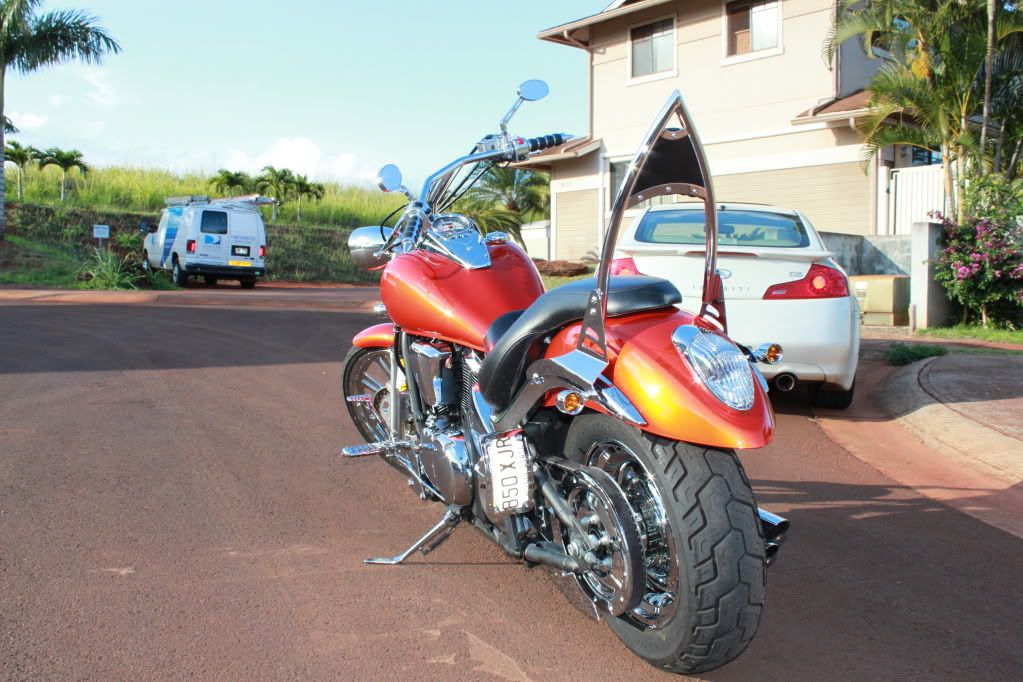

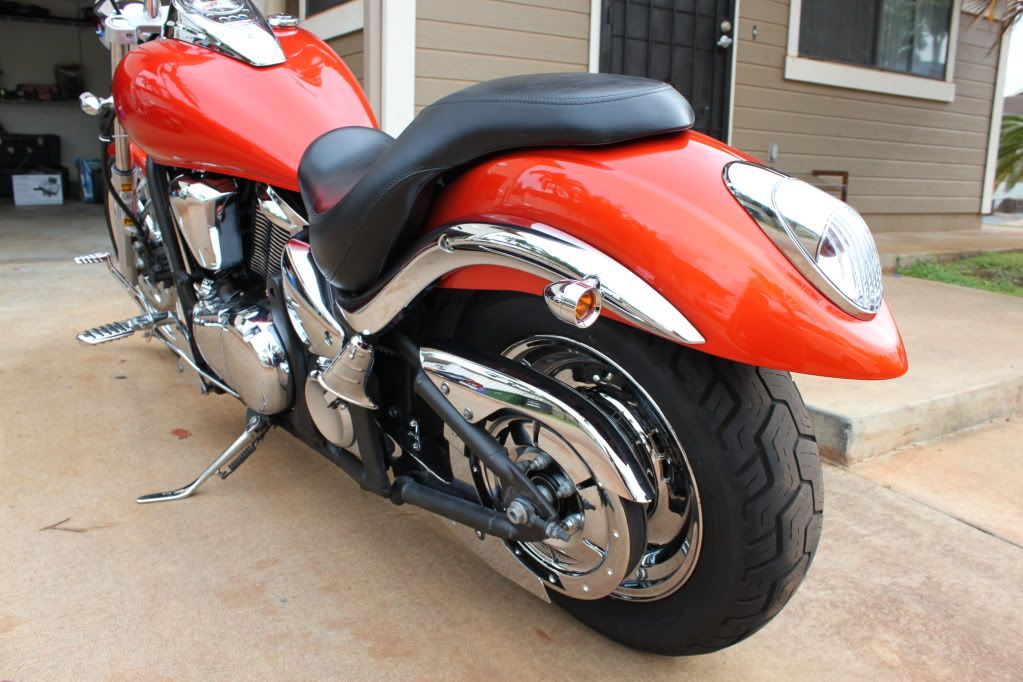

i played with mine a bit back when i had my 9, but evetually when back to the rear license plate because i didnt like the look. I just found some cheap bullets lights for my v2k for like 20 bucks on ebay







Last edited by bigsarge2012; 02-26-2012 at 08:41 AM.
bigsarge2012 is offline
