Old 08-11-2011, 09:05 PM   #1
peruano
Senior Member

peruano's Avatar

Join Date: Jun 2009
Location: New Mexico
Posts: 231
Default check those battery connections

The typical battery installation for a Vulcan 500 involves a two-stage attachment of the battery cables to the battery posts. Since this arrangement often results in a loose connection, and the intermittent stalls etc that such connections cause, this detailed explanation if offered with the hope of assisting Vn 500 owners in rectifying the problem.

I experienced a variety of symptoms, but in the end, I could start the bike, let it run for 3 minutes, have it die, tip it from side to side, or roll it forward and it would start. All of these movements were establishing temporary contact in the battery connections and then disrupting them again at the slightest movement or vibration. If you have erratic problems check this source.
-

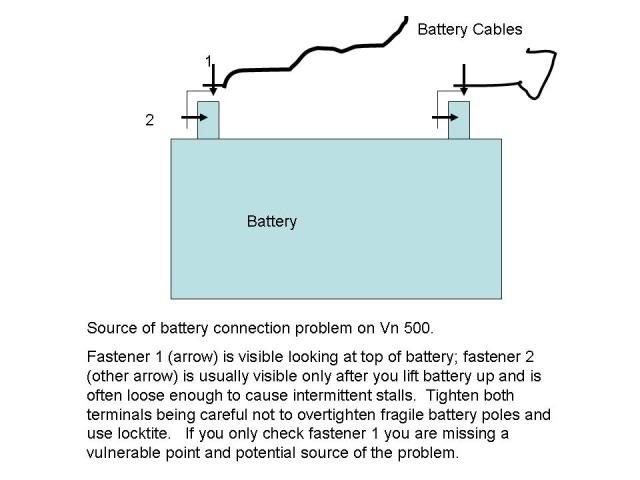

Battery poles have fasteners attaching an L shaped bracket to the battery post. This is attached by a horizontal bolt (fastener) that is not easily visible unless the battery is lifted from the battery box. This L shaped bracket is subsequently attached to the battery cables by a vertical bolt (fastener) visible from the top of the battery. It is not enough to check that the vertical fasteners are tight; often it is the horizontal fasteners, not as easily accessible, that are loose and the source of electrical problems.
In brief if you suspect an erratic electrical supply, check the battery connections, but . . . be sure and check all four (the two on top and the two on the side of the battery posts.). Remember battery posts are lead and thus soft. Do not overtighten, but once treated with locktite and tightened they should stay functional. I apologize for the excessive detail, but we have all seen this problem explained but not completely understood by the person standing on the side of the road, or frustrated with their new ride. Ride on, and safely. Tom
__________________
Tom, New Mexico. Just trying to have me some fun.
2006 Kawasaki VN500
2002 Yamaha TW200
peruano is offline   Reply With Quote
Sponsored Links
Advertisement

Old 08-11-2011, 10:41 PM   #2
sfair
Top Contributor

Join Date: Apr 2009
Posts: 6,489
Default

Excellent post. Well done!!!
sfair is offline   Reply With Quote
Old 08-11-2011, 10:44 PM   #3
fastpakr
Top Contributor

fastpakr's Avatar

Join Date: Oct 2009
Location: Roanoke, VA
Posts: 886
Default

Yep, great job!
__________________
'99 Vulcan 500, 29k miles
http://www.fuelly.com/sig-us/28917.png
fastpakr is offline   Reply With Quote
Old 08-12-2011, 08:23 AM   #4
MN-Rider
Administrator

MN-Rider's Avatar

Join Date: Apr 2008
Location: Twin Cities, MN
Posts: 4,802
Garage
Default

Quote:
Originally Posted by sfair View Post
Excellent post. Well done!!!
Sticky worthy?
MN-Rider is online now   Reply With Quote
Old 08-12-2011, 10:46 AM   #5
MichelleS
Member

Join Date: May 2010
Location: Ontario
Posts: 36
Default

Definitely Sticky worthy! I've just had to fix this problem on my bike a couple days ago when it died in the rain! Those bottom screws are a royal pain to get at!
__________________
Just because something can be done, doesn't mean it should be done.
MichelleS is offline   Reply With Quote
Old 08-12-2011, 11:16 AM   #6
MN-Rider
Administrator

MN-Rider's Avatar

Join Date: Apr 2008
Location: Twin Cities, MN
Posts: 4,802
Garage
Default

Quote:
Originally Posted by MichelleS View Post
Definitely Sticky worthy! I've just had to fix this problem on my bike a couple days ago when it died in the rain! Those bottom screws are a royal pain to get at!
You got it!
MN-Rider is online now   Reply With Quote
Old 08-12-2011, 01:07 PM   #7
peruano
Senior Member

peruano's Avatar

Join Date: Jun 2009
Location: New Mexico
Posts: 231
Default

Thanks folks, Let me know if you can suggest word or graphic changes that will clarify the subject. Its the Power of Powerpoint. Tom
__________________
Tom, New Mexico. Just trying to have me some fun.
2006 Kawasaki VN500
2002 Yamaha TW200
peruano is offline   Reply With Quote
Old 08-12-2011, 02:08 PM   #8
Zim_the_Giant
Top Contributor

Join Date: Jun 2011
Location: Lock Haven, Pennsylvania
Posts: 683
Garage
Default

I'm still new to motorcycles, and didn't realize just how important the battery connections are to check. I thank you very much for the detailed instructions and graphic. I think I'll actually go check them now.
Zim_the_Giant is offline   Reply With Quote
Old 08-12-2011, 03:29 PM   #9
Blaine
Top Contributor

Blaine's Avatar

Join Date: Mar 2011
Location: Prince Edward Island Canada
Posts: 897
Default

Excellent post! Glad to see it a "sticky"
__________________
If at first you do succeed,try not to look surprised!
Blaine is online now   Reply With Quote
Old 08-14-2011, 09:05 PM   #10
GeorgiaRider
Top Contributor

GeorgiaRider's Avatar

Join Date: Oct 2008
Location: NW Georgia
Posts: 566
Default

Thanks Peruano. I had battery connection issues on my new bike and they fixed it by tightening the places you mention (#2). I had a hard time understanding where they were, but now I know. Greatly appreciate you explaining it for us.
__________________
GeorgiaRider
2006 Vulcan 500

Saddlemen Cruis'n Large Slant Saddlebags
Kuryakyan Foot Peg Extenders and Pegs
Kuryakyan Iso-Grips and Throttle Boss
Memphis Shades Alley Cat Windshield
Powersports Mini-Tachometer
Kawasaki Luggage Rack
Airhawk cushion
Marlin's Clock
GeorgiaRider is offline   Reply With Quote
